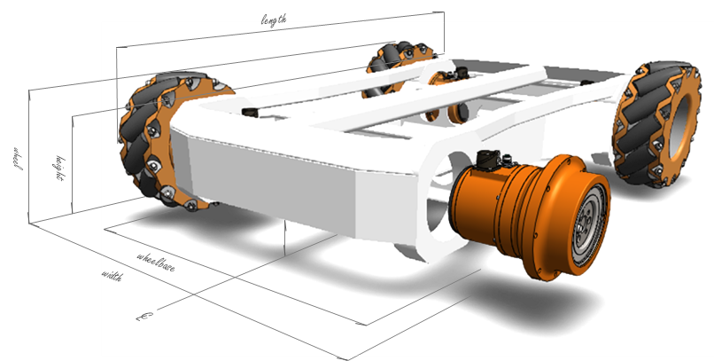

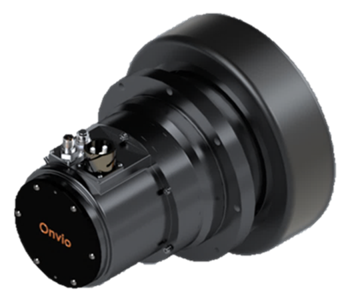

Onvio’s propulsion gearmotors are designed with the know-how gained from over 25 years of experience powering mobile robots. With the flexibility to configure specific design features required for your mid-large size platform needs, the ProMotor is your ideal long-term solution.
48V Supply
Configurable Electrical Connections
Power-off Brake
Integrated Encoder, Halls & Thermistor
Single & Dual Stage Ratios Up to 100:1

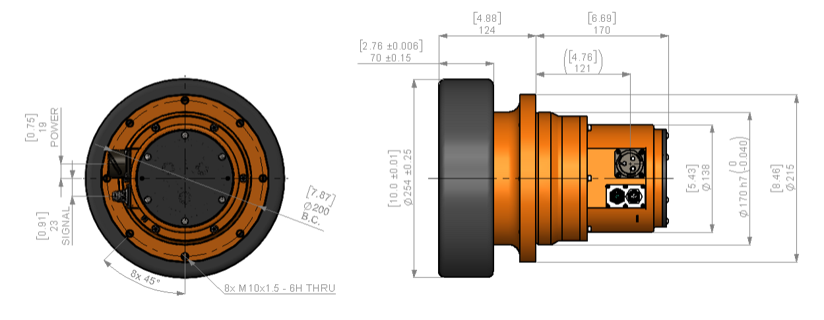

Features shown as configured in the models, drawings, and images.

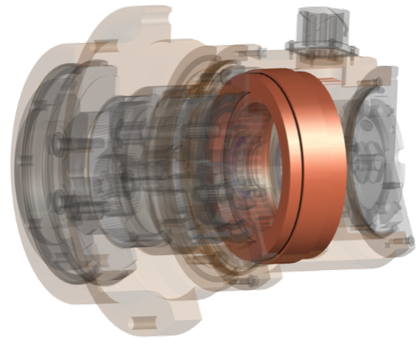

Onvio utilizes a variety of high-performance brushless DC servo motors, integrated within the chassis for optimal thermal dissipation and sustained peak performance.
Standard 48V motor supply:
* If different performance criteria are required for your application, motors can be provided in 150V, 300V or other variants upon request.

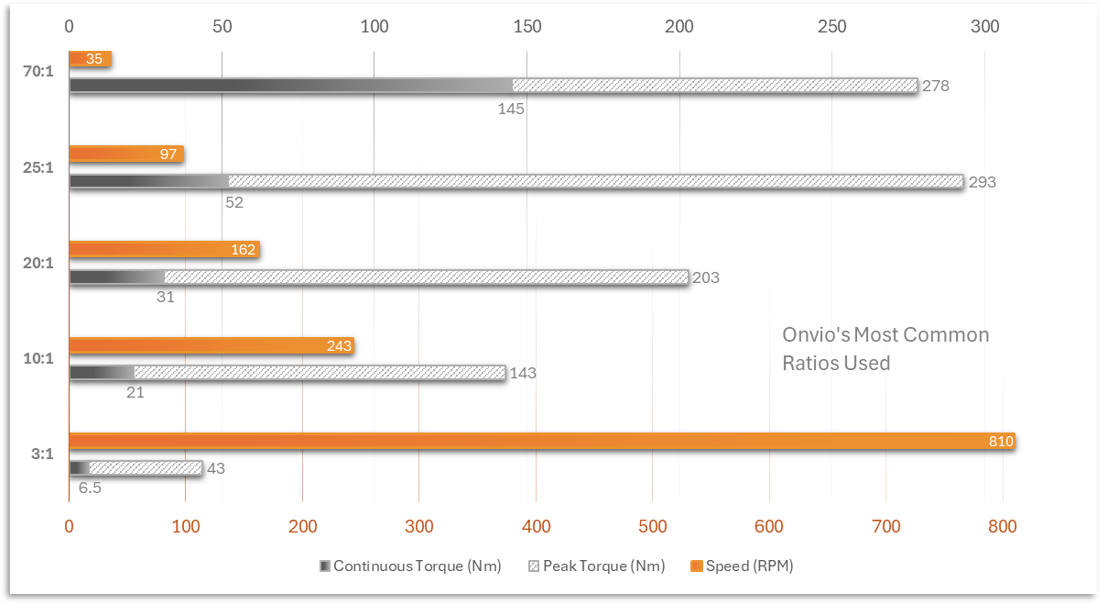

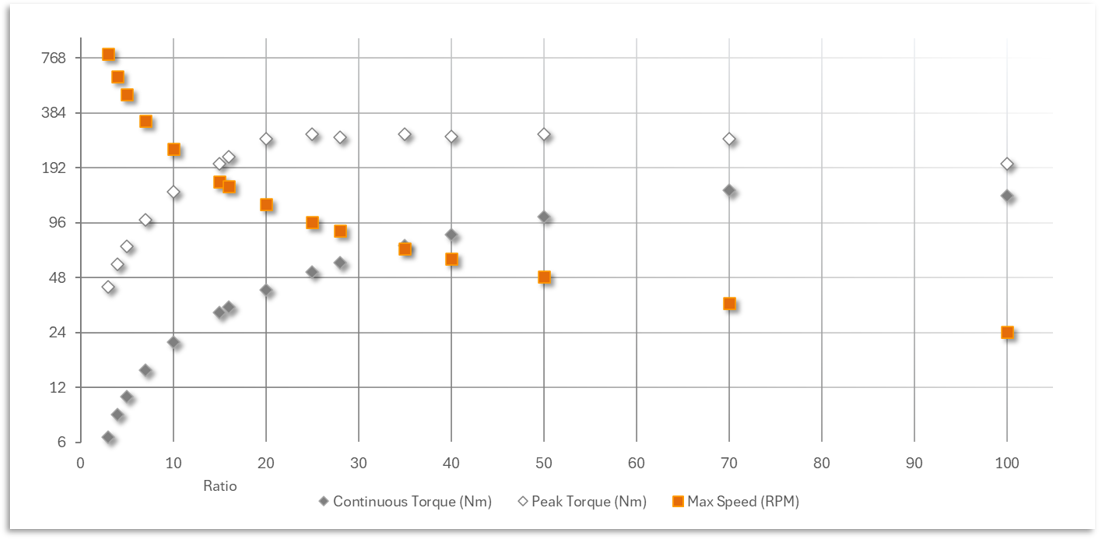

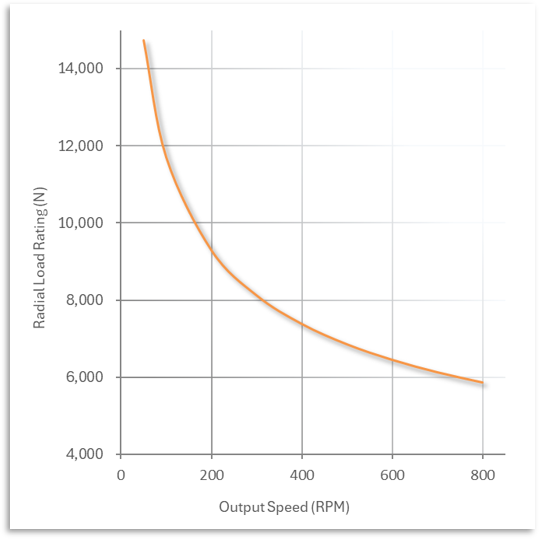

Achieve the ideal speed and torque with 25 available gear ratios, and support loads up to 1150kg per wheel.

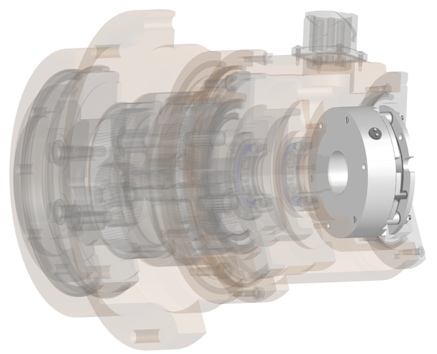

Onvio offers the ProMotor with or without an integrated power-off brake. If your application has specific saftey requirements, please let us know and we can tailor your ProMotor to align with your needs.
Standard ProMotor Power-off Brake:
* If other types of brake solutions or if a brake is not required, the ProMotor can be configured accordingly upon request.

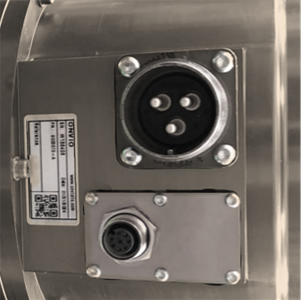

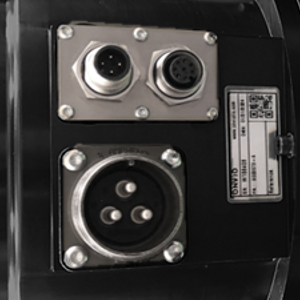

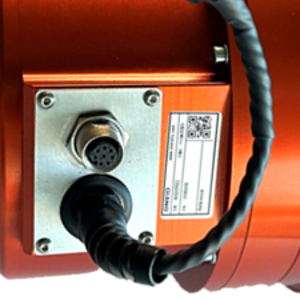

Onvio’s ProMotor offers a variety of industry standard feedback and connector options to best fit your application’s needs. The ProMotor design has the flexibility to meet your requirements, not the other way around.
Encoder and Hall Sensors
Encoder Only
Hall Sensors Only
PTC or NTC Thermistor’s available
Other – let us know what is required for your application.
Threaded
Bayonet

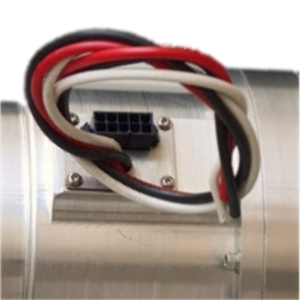

Pigtail
Flying Lead
Rectangular
Other

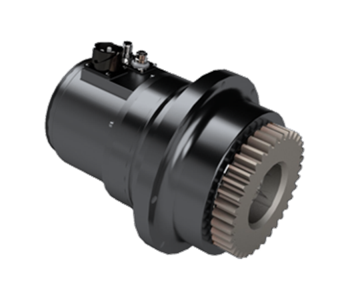

Choose the wheel size, material, and configuration that fits your application – including the option to integrate your own wheel or alternative output configurations.
OD: 254mm – 350mm
Width: 50mm – 100mm
Durometer: 80-90 Shore A
Omnidirectional wheel
Pneumatic tire
Solid Shaft
Flange
Ø254mm x 70mm WD, Plane Urethane, 90 Shore A

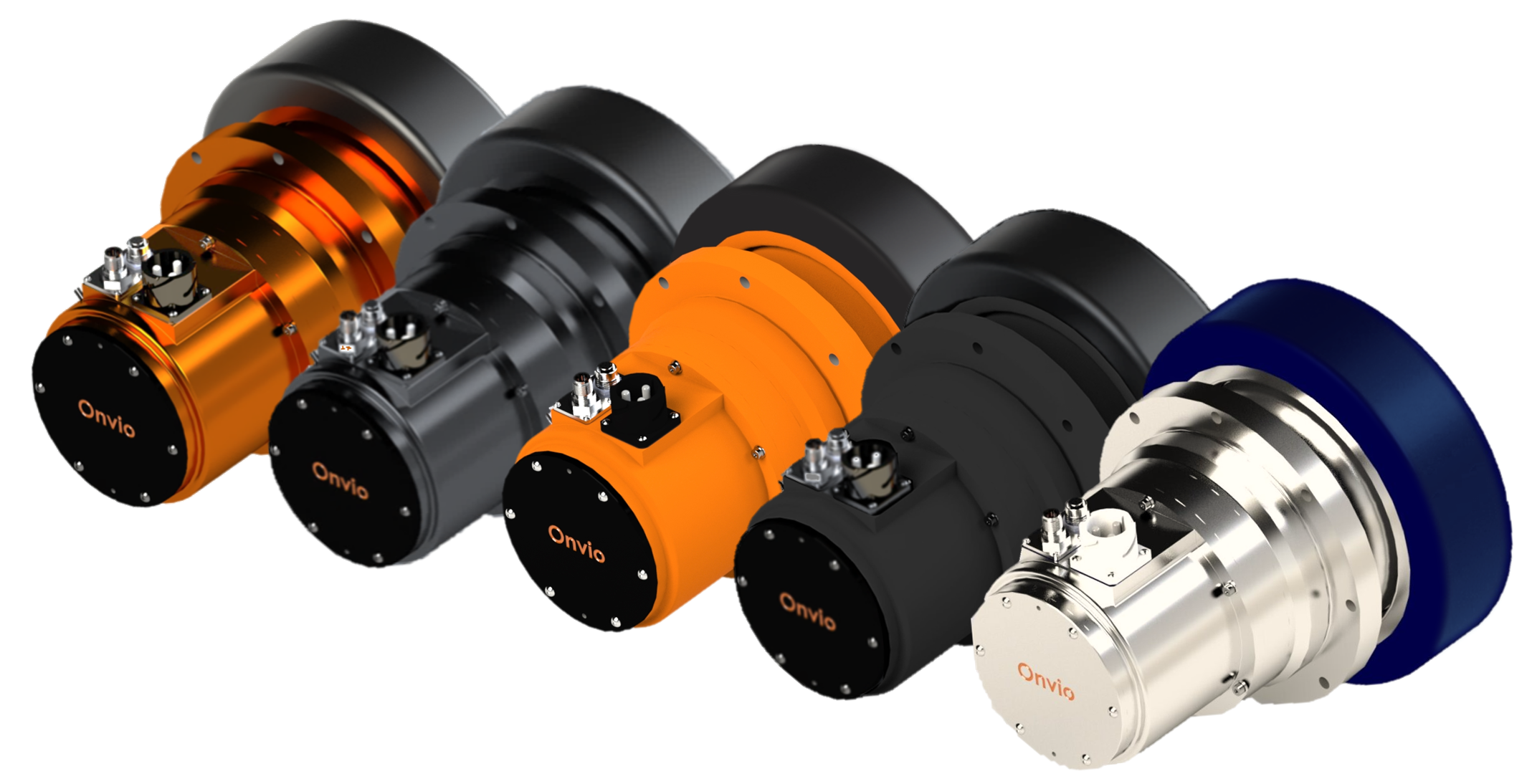

With multiple finish options and IP ratings to choose from, Onvio has you covered even for your most demanding applications and working environments.
Orange Anodize
Black Anodize
Orange Powder Coat
Marine Grade Black Powder Coat
Nickel & Stainless Steel
IP54
IP65
IP67-69 options available upon request
Rated Torque
N⋅m
Rated Speed
RPM
Peak Torque
Holding Torque
